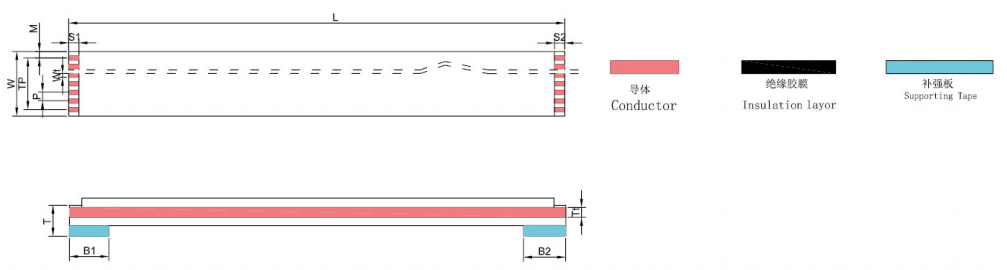

Meaning of simplified code of FFC cable diagram
FFC cable ordering guide

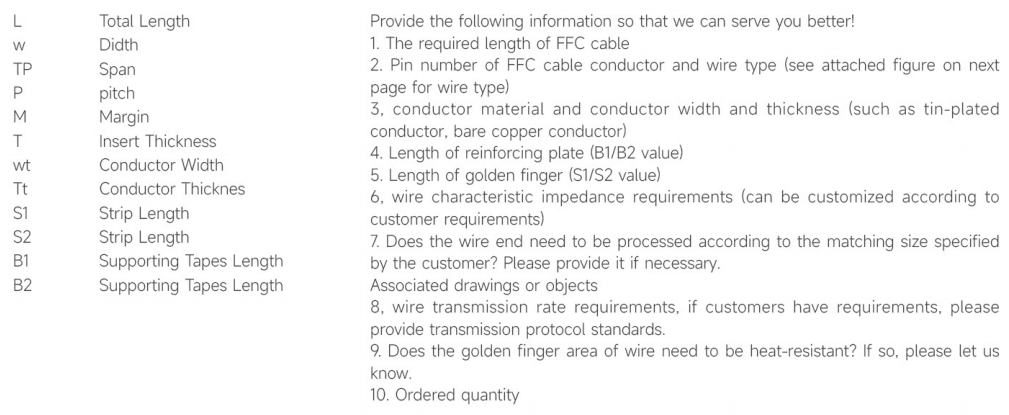

Provide the following information so that we can serve you better!
1. The required length of FFC cable

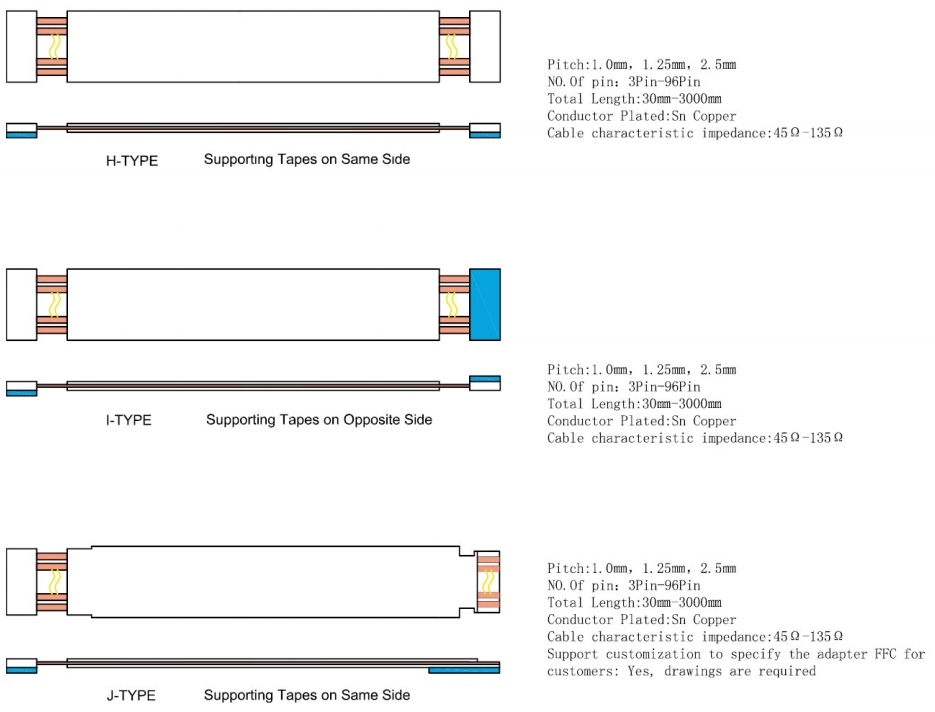

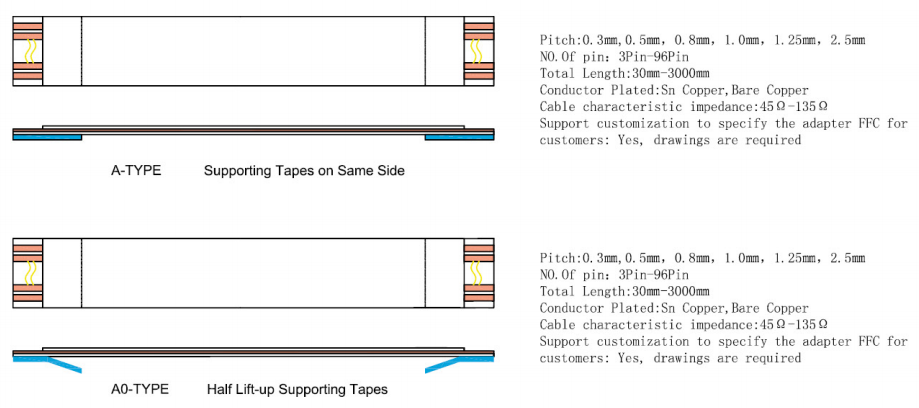

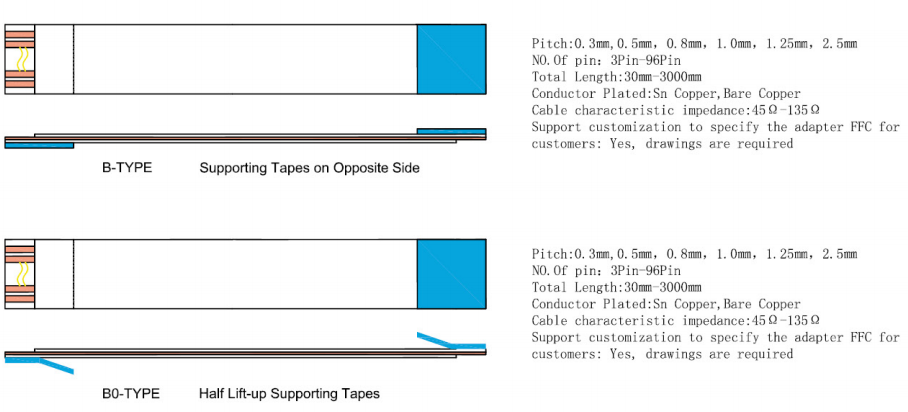

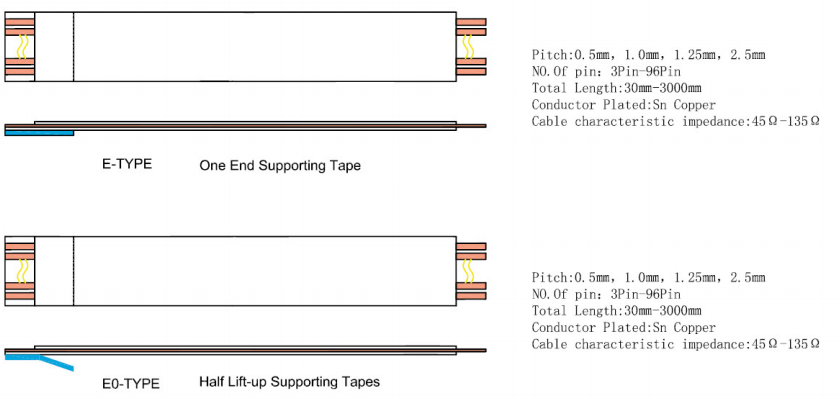

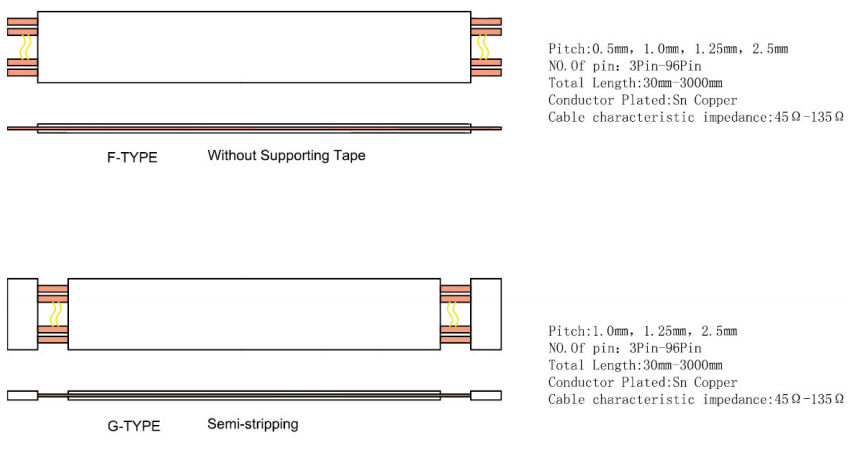

2. Pin number of FFC cable conductor and wire type (see attached figure on next page for wire type)
3. conductor material and conductor width and thickness (such as tin-plated conductor, bare copper conductor)
4. Length of reinforcing plate (B1/B2 value)
5. Length of golden finger (S1/S2 value)
6. wire characteristic impedance requirements (can be customized according to customer requirements)
7. Does the wire end need to be processed according to the matching size specified by the customer? Please provide it if necessary. Associated drawings or objects
8. wire transmission rate requirements, if customers have requirements, please provide transmission protocol standards.
9. Does the golden finger area of wire need to be heat-resistant? If so, please let us know.
10. Ordered quantity
