◇ Wire length 4 range: 45 mm -800 mm
◇ Wire performance combination project
◇ 1. The wire can match the characteristic impedance range of 45Ω-135Ω according to customer's requirements;
◇ 2. Wire can be matched with various types of shielding materials (such as aluminum foil/copper foil/conductive cloth/other types of shielding materials) according to customer requirements.
◇ 3. Other auxiliary materials such as broken line/back glue/can be added to the wire according to customer's requirements.
◇ 4. customized materials can be used for wires according to requirements (for example, high-speed transmission rate requirements, high-temperature resistance in the golden finger area, etc.)
◇ 6. Both ends of the wire can be customized for die opening and punching according to requirements.

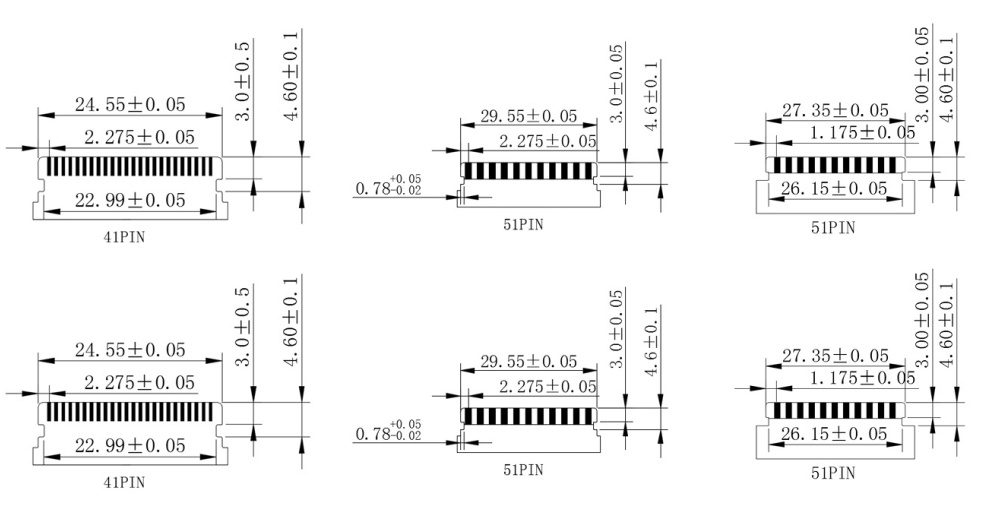

Schematic diagram of the contour at both ends of the wire
